Chained reactions

To showcase the dynamic or programmatic model creation, we will build a model consisting of a circular chain of \(N\) reactions,

\[\begin{split} \begin{cases} X_1 \rightarrow X_{2} \\ \ldots \\ X_i \rightarrow X_{i+1} \\ \ldots \\ X_N \rightarrow X_{1} \end{cases} \end{split}\]

and simulate it for different values of \(N\).

import matplotlib.pyplot as plt
import numpy as np
from simbio.components import EmptyCompartment
from simbio.reactions import single
from simbio.simulator import Simulator

To define a model programmatically, we need a Builder instance, which can be created from a Compartment.to_builder() method. Builder has several add_* methods to create species or add reactions.

def cyclic_reaction(N_steps):
    builder = EmptyCompartment.to_builder()

    # First species
    x_pre = builder.add_species("x0", 1)

    # Chained reactions
    for i in range(1, N_steps):
        x_post = builder.add_species(f"x{i}", 0)
        builder.add_reaction(f"r{i}", single.Conversion(A=x_pre, B=x_post, rate=1))
        x_pre = x_post

    # Reaction from last to first species
    x_post = builder.x0
    builder.add_reaction(f"r0", single.Conversion(A=x_pre, B=x_post, rate=1))

    return builder.build()

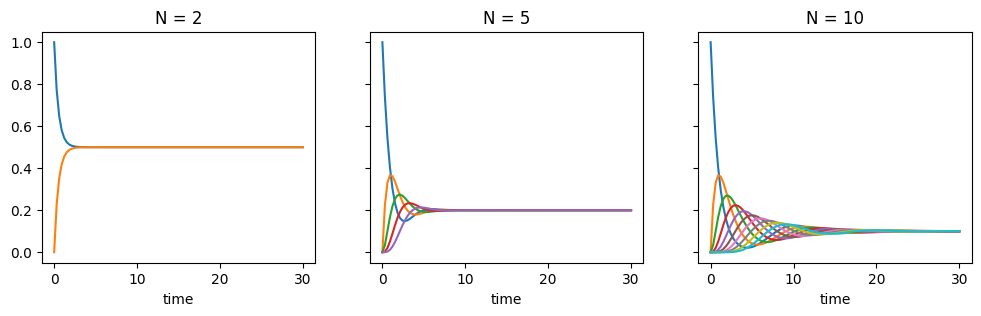

With the cyclic_reaction function, we can build a model of \(N\) reactions, and simulate it for different values of \(N\):

t = np.linspace(0, 30, 100)
N_steps = (2, 5, 10)

fig, axes = plt.subplots(1, len(N_steps), sharey=True, figsize=(12, 3))
for ax, N in zip(axes, N_steps):
    model = cyclic_reaction(N)
    Simulator(model).run(t).plot(ax=ax, legend=False).set(title=f"N = {N}")
